Accortec Cables

MTP Fiber Cables

Multi-fiber Termination Push-on Optic Cables

Accortec MTP and MPO fiber cables are manufactured to the highest specifications and are the ideal solution for all network and data center needs. These cables are constructed using Corning glass, are UL certified OFNR (Riser) rated, and offer an industry leading insertion loss, ideal for superior data transmission in the highest trafficked networks. Custom configurations are available using 12 and 24 pin connectors, 12, 24, 48, 96 and 192 fiber wiring, and breakout options. Each product undergoes in depth qualification and testing to ensure maximum performance in rigorous technology environments. All items are manufactured using the highest quality components and covered by a Lifetime Warranty.

MMF Trunk
MMF Breakout
SMF Trunk
SMF Breakout
Square-500x500_Cables-Fiber_MTP_MMF_TRUNK.501
Square-500x500_Cables-Fiber_MTP_MMF_TRUNK.499
Square-500x500_Cables-Fiber_MTP_MMF_TRUNK.500

Performance

  • Insertion Loss (max.): 0.35dB
  • Optical Return Loss: >20dB
  • Storage Temperature: -40°C +80°C
  • Operation Temperature: -20°C +70°C
  • Attenuation dB/km max.: 1.0

Fiber

  • Core Diameter: 50μm
  • Cladding Diameter: 125μm
  • Inner Strength Material: Kevlar

Jacket

  • Jacket Size: 2mm
  • Jacket Style: Duplex Zipcord PVC
  • Jacket Color: Aqua
  • Fire Rating: OFNR (Riser)
Square-500x500_Cables-Fiber_MTP_MMF_Breakout.504
Square-500x500_Cables-Fiber_MTP_MMF_Breakout.502
Square-500x500_Cables-Fiber_MTP_MMF_Breakout.503

Performance

  • Insertion Loss (max.): 0.35dB
  • Optical Return Loss: >20dB
  • Storage Temperature: -40°C +80°C
  • Operation Temperature: -20°C +70°C
  • Attenuation dB/km max.: 1.0

Fiber

  • Core Diameter: 50μm
  • Cladding Diameter: 125μm
  • Inner Strength Material: Kevlar

Jacket

  • Jacket Size: 2mm
  • Jacket Style: Duplex Zipcord PVC
  • Jacket Color: Aqua
  • Fire Rating: OFNR (Riser)

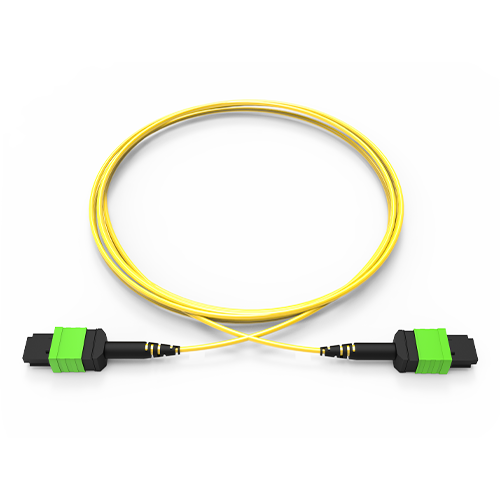

Square-500x500_Cables-Fiber_MTP_SMF_TRUNK.507
Square-500x500_Cables-Fiber_MTP_SMF_TRUNK.505
Square-500x500_Cables-Fiber_MTP_SMF_TRUNK.506

Performance

  • Insertion Loss (max.): 0.35dB
  • Optical Return Loss: >20dB
  • Storage Temperature: -40°C +80°C
  • Operation Temperature: -20°C +70°C
  • Attenuation dB/km max.: 1.0

Fiber

  • Core Diameter: 50μm
  • Cladding Diameter: 125μm
  • Inner Strength Material: Kevlar

Jacket

  • Jacket Size: 2mm
  • Jacket Style: Duplex Zipcord PVC
  • Jacket Color: Yellow
  • Fire Rating: OFNR (Riser)
Square-500x500_Cables-Fiber_MTP_SMF_Breakout.510
Square-500x500_Cables-Fiber_MTP_SMF_Breakout.508
Square-500x500_Cables-Fiber_MTP_SMF_Breakout.509

Performance

  • Insertion Loss (max.): 0.35dB
  • Optical Return Loss: >20dB
  • Storage Temperature: -40°C +80°C
  • Operation Temperature: -20°C +70°C
  • Attenuation dB/km max.: 1.0

Fiber

  • Core Diameter: 50μm
  • Cladding Diameter: 125μm
  • Inner Strength Material: Kevlar

Jacket

  • Jacket Size: 2mm
  • Jacket Style: Duplex Zipcord PVC
  • Jacket Color: Yellow
  • Fire Rating: OFNR (Riser)
